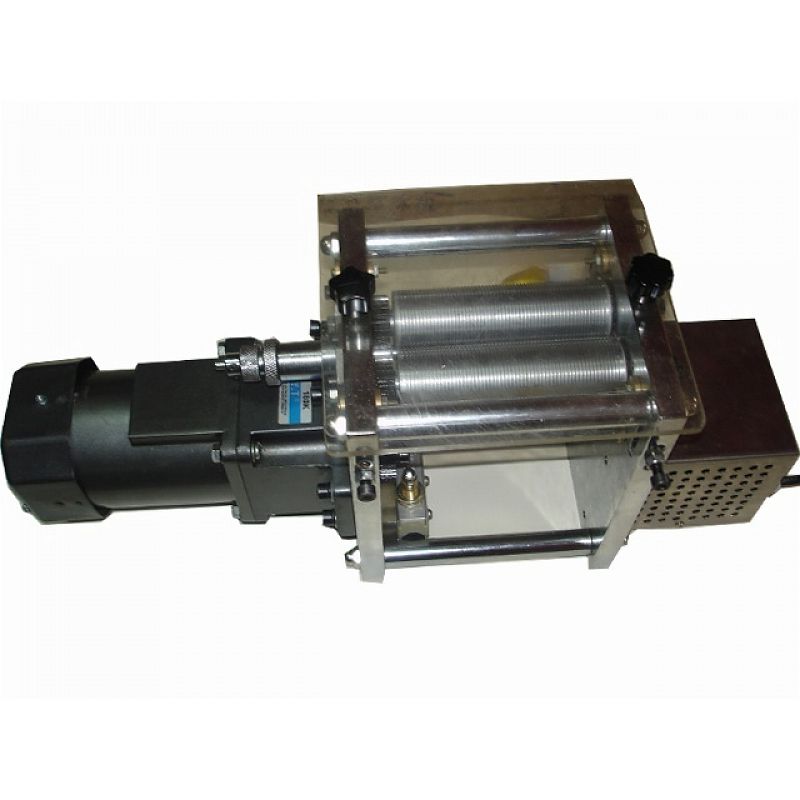

02 series Semi-automatic Artistic Drinking Straw Making Machine
DESCRIPTION
02 series semi-automatic artistic drinking straw making machine is a kind of equipment used to process multi-tooth flexible straw. The teeth number can reach to 60pacs. First, the polypropylene straight straw be feeded by hand.Then, two groups of forming wheel are controlled by foot switch to rotate. After that, the straw is automatically shaped into flexible straw with 60 teeth .Finally. the operater pull out the drinking straw by hand.
This straw making machine has the ISO9001 and the CE Certificate.
CHARACTERISTICS
◆The flexible artistic straw with 60-tooth。
◆The operation is convenient. Foot switch is applied and the operation can be performed with both hands.
SPECIFICATIONS:
|
Driving motor
|
90w
|
|
Production capacity
|
20pcs/min
|
|
Straws specification
|
Inside diameter
|
Φ5.8mm
|
|
Length of straight straw
|
270~400mm
|
|
Thickness
|
0.15~0.19mm
|
|
tooth
|
40~60牙
|
|
Other specifications are Customizable
|
|
Machine size((L×W×H)
|
200 × 90×160mm
|
|
Machine weight
|
40kg
|
